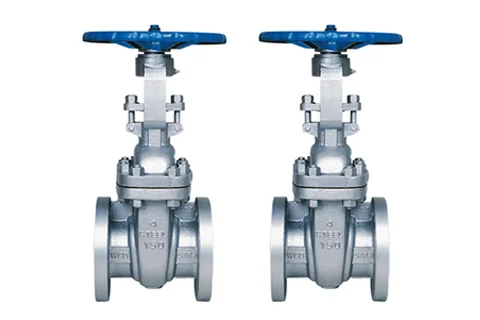

GATE VALVE

Safety Valves Manufacturer
Gate Valve India

A Gate Valve is nothing but a type of valve that opens up when its round gate lifts up out of the track of the fluid. This makes certain that there is an uninhibited flow of the fluid, which can be controlled as required. We present our patrons an extensive array of gate valves which are fabricated in compliance to the industrial quality standards. We also customize these valves precisely as per the specifications of our customers. Our valves are made under the supervision of experts hence they are robust & flawless. These valves are corrosion resistant and have excellent durability. We offer these valves at incredible rates like our Thermal Relief Valve, Pressure Reducing Safety Valve and Liquid & Safety Valve.

Applications of Gate Valve:

  • Petroleum industry
  • Power Generation
  • Chemical industry
  • Fertilizer industry
  • Steel industry
  • Petrochemical industry
  • Steel industry
Technical Data:
Manufacturing Std. : Generally conforming to BS 5352
End Connection : Screwed Ends to BSP / BSPT/ NPT (F)
Socket Weld Ends to ANSI B 16.11
Inspection and Testing Std : AP 598

Test Pressure :
Testing Body Seat
Hydraulic 425 PSIG 300 PSIG

All dimensions are in M.M :
Size L SCR. Ends
    Oc E
15 53 ½” 13.56
20 63 ¾” 13.87
25 73 1” 17.35
40 80 1 ½” 18.38
50 85 2” 19.23
P. No Nomenclature Material
1 Body ASTM A 351 Gr  CF8/CF8M
2 Bonnet ASTM A 351 Gr  CF8/CF8M
3 Wedge ASTM A 351 Gr  CF8/CF8M
4 STEM ANSI 304/316
5 STEM RETAINERS ANSI 304/316
6 Gland ANSI 304/316
7 Gland Nut ANSI 304/316
8 Steam Packing PTFE GRAFOIL
9 Hand Wheel Cast Iron Aluminum
10 Hand Wheel Nut & Washer SS 304 M.S. plated
